SPECIFICATIONS

Battery Included: Yes
Brand Name: Huepar
Certification: CE,FCC,RoHS
Charging Time: About 4.0 hrs with 5V/2A adapter
Feature: Adjustable brightness
Function: With Pulse Mode
High-concerned chemical: None
Is Smart Device: No
Laser Beam: Osram diode green beam
Laser Class: Class 2
Measurement Model: 12 lines
Mode: Self-leveling mode & manual mode
Model Number: 703CG+LR-5RG+TPD14A+LM50A
Mount Size: 1/4"-20 & 5/8"-11
Name: Huepar 703CG 12 Lines Laser Level Set
Operating Times: About 10 hours
Origin: Mainland China
Precision: ±3mm at 10m

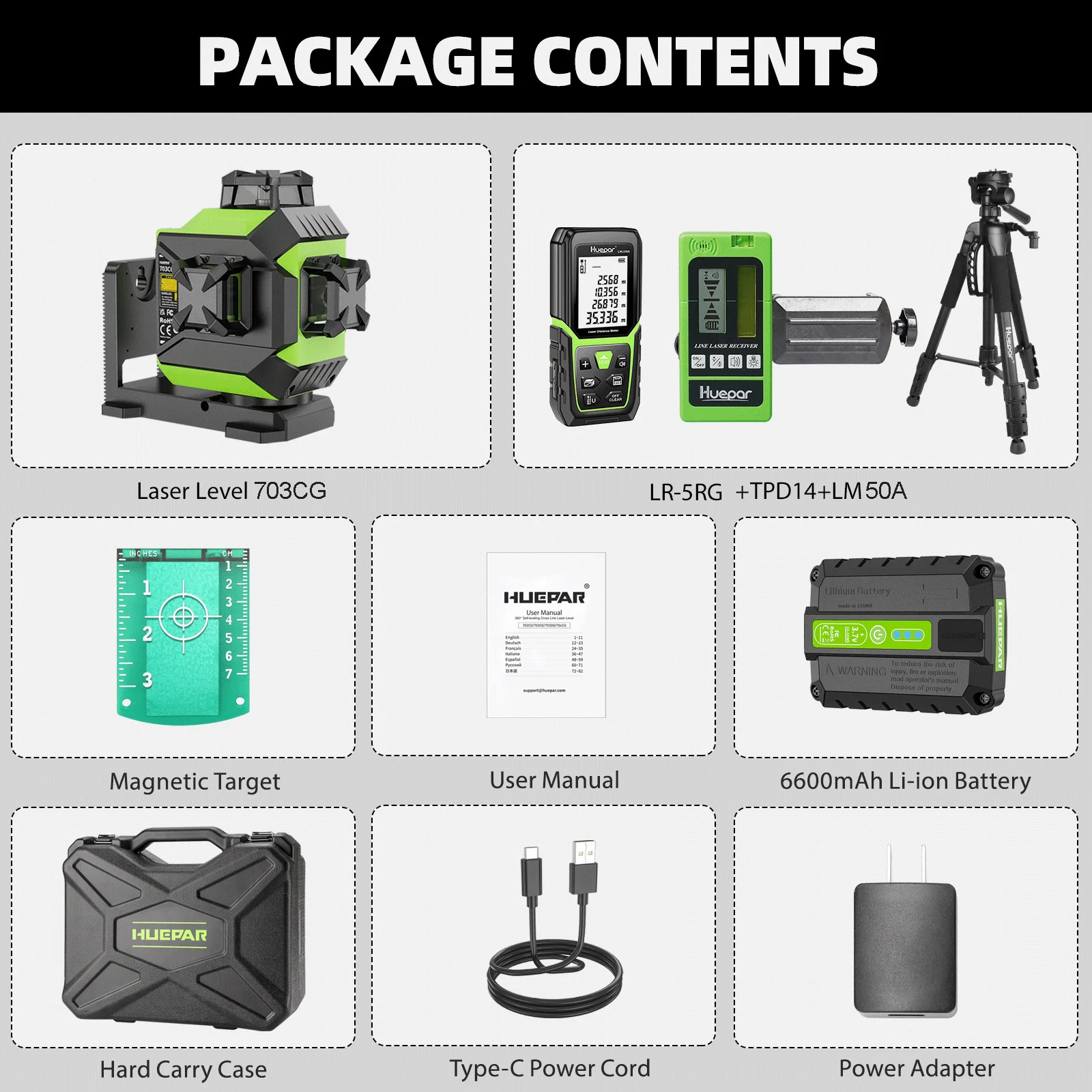

Set includes: 703CG laser level, detector, tripod, rangefinder
Size: 25.5*13.2*23.7cm
Spread Coverage: 3*360 degree
Type: Vertical & Horizontal Lasers,Cross Line Laser Level
Wavelength: 505-520nm
Working Distance: 30m / 60m with laser receiver
is_customized: No


Huepar 703CG Set 12 Lines Laser Level with Detector & Tripod & Rangefinder 3D Self-leveling Cross Line Adjust Bright Laser Tools

703CG 3 x 360° Green Laser Level Set Specifications:

Model:
703CG Green Beams Laser Level

Power Source:
3.7V/6600mAh Li-ion Battery
Laser Class:
Class 2 (IEC/EN60825-1/2014), <1mW

Operating Time:
About 10 hours
Laser Wavelength:
505-520nm

Charging Time:
About 4.0 hrs with 5V/2A adapter
Leveling Accuracy:
± 1/9" at 33Ft.

Mount Size:
1/4"-20 & 5/8"-11
Compensation Range:
±3.5°

IP Rating:
IP54
Self-leveling Time:
≤3 Seconds

Reference Working Distance:
30m, 98Ft.(60-100 LUX)

Work Temperature:
14℉~ 122℉(-10℃~ 50℃)
Reference Working Distance:
60m, 197Ft. with Laser Receiver

Storage Temperature:
"-4℉~ 158℉(-20℃~ 70℃)
Tripod Height
 1.48m tripod (TPD14 or TPD14A)

Laser Receiver Data:
10HZ, duty cycle: 1:1
Laser Rangefinder:
50m Rangefinder ( LM50A or S60 )

Laser Receiver:
Orange or Green body colorn
Warning:
Avoid direct exposure of the laser beam to the eyes.The laser would be affected by strong sun light when work outside.
